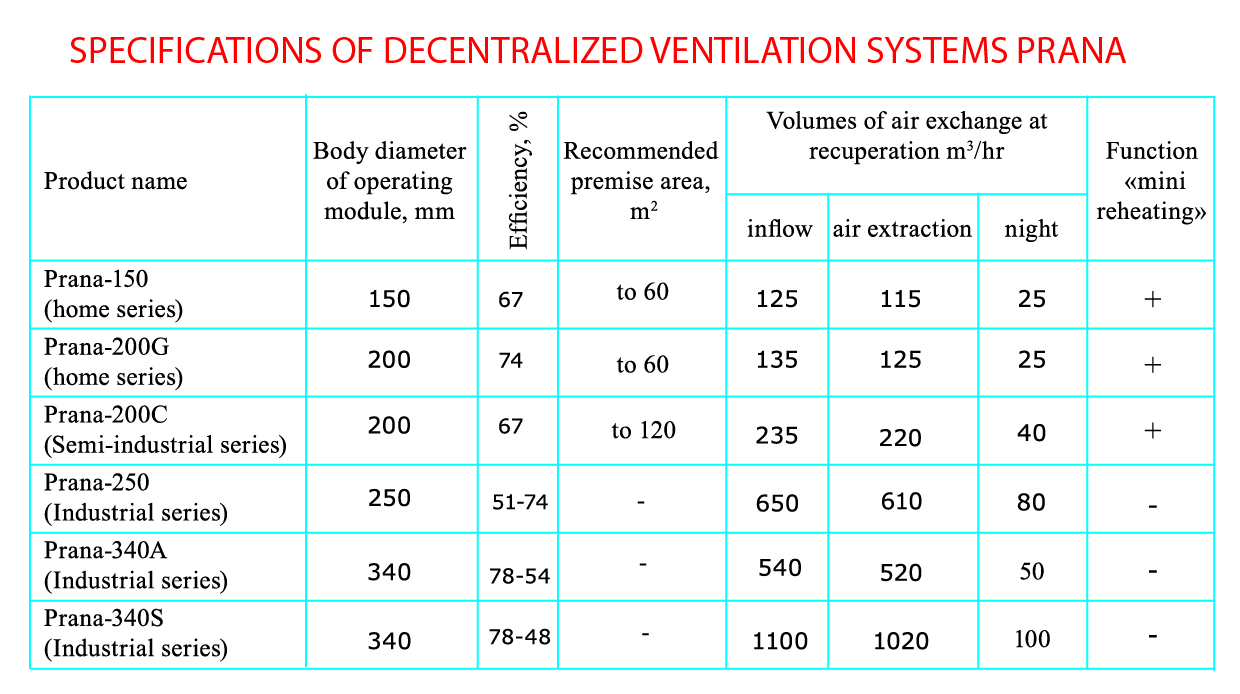

PRODUCT RANGE OF VENTILATION SYSTEMS PRANA

HOME SERIES

RECUPERATOR "PRANA-150"

Body diameter of the operating module – 150 mm;

Mounting hole diameter - 162 mm;
Length of the working unit - 535 mm;
Recommended premise area - up to 60 m²;
Volumes of air exchange at recuperation:
Inflows: 115 m³/hr,
Air extraction: 105 m³/hr,
in the «night» mode - 25 m³/hr;
Efficiency % - 83;
Electricity consumption - from 7 W/hr to 32 W/hr  depending on the operating mode;
Control system: remote control or dimer (adjustable resistor).
The «mini reheating» function.
Due to curved of copper heat exchanger reduces noise level in 7-8 times from the original level.

These models are used for objects of household purposes (apartments, houses, offices, training and pre-schools, etc.). Body is insulated. Double protection against frontal blowdown. Additional function "mini reheating." Noise level at a distance of 3 meters from the device at maximum mode of decentralized ventilation system does not exceed 38 dB, in the "night" mode - 25 dB.

RECUPERATOR «PRANA-200G”

Body diameter of the operating module - 200 mm;
Mounting hole diameter  - 220 (250) mm;
Length of the working unit - 440 mm;
Recommended premise area - up to 60 m²;
Volumes of air exchange at recuperation:
Inflows: 135 m³/hr,
Air extraction: 125 m³/hr,
in the «night» mode - 25 m³/hr,
Efficiency %  - 74;
Electricity consumption - from 7 W/hr to 32 W/hr depending on the operating mode;
Control system: remote control or dimer (adjustable resistor).
The «mini reheating» function.
Due to curved of copper heat exchanger occurs noise absorption, in 8-9 times.

SEMI-INDUSTRIAL SERIES

Designed to provide ventilation of premises of large areas and / or specific service conditions, launched into production, with appropriate technical properties. Given model is applied on the production objects for industrial use (factories, shopping malls, sports and entertainment complexes, swimming pools, premises of the agricultural sector, etc.).

RECUPERATOR «PRANA-200C”

Body diameter of the operating module - 200 mm;
Mounting hole diameter  - 220 (250) mm;
Length of the working unit - 500 mm;
Recommended premise area - up to 120 m²;
Volumes of air exchange at recuperation:
Inflows: 235 m³/hr,
Air extraction: 220 m³/hr,
in the «night» mode - 40 m³/hr,
Efficiency % - 67;
Electricity consumption - from 7 W/hr to 32 W/hr depending on the operating mode;
Control system: remote control or dimer (adjustable resistor).
The «mini reheating» function.

INDUSTRIAL SERIES

Designed to provide ventilation of premises of large areas and / or specific service conditions, launched into production, with appropriate technical properties. Given model is applied on the production objects for industrial use (factories, shopping malls, sports and entertainment complexes, swimming pools, premises of the agricultural sector, etc.).

RECUPERATOR «PRANA-250»

Body diameter of the operating module - 250 mm;
Volumes of air exchange at recuperation:
Inflows: 650 m³/hr,
Air extraction: 610 m³/hr;
Efficiency % - 51-74;
Electricity consumption - from 15 W/hr to 90 W/hr depending on the operating mode;
Model is applied on the objects of production and industrial use (factories, shopping malls, sports and entertainment complexes, swimming pools, premises of the agricultural sector, etc.).
To ensure safe operating conditions in high humidity conditions is stipulated that the power of Prana-250 system is provided from the DC power source +24 V.
Connecting to AC 220V occurs through AC / DC converter (adapter). Control of the system is provided by using a professional control box, which already has a network adapter of 220V.
The system is designed for indoor installation. If necessary, the system provides a connection of long branched exhaust ventilation and / or air plenum channels (Σδr500pa).

RECUPERATOR "PRANA-340 A"

Body diameter of the operating module  - 340 mm;
Mounting hole diameter - 350 mm;
Volumes of air exchange at recuperation:
Inflows: 540 m³/hr,
Air extraction: 520 m³/hr,
Volumes of air exchange at one-sided movement of ventilators:
Inflows: 1100 m³/hr,
Air extraction: 1100 m³/hr,
Efficiency % - 78-54;
Electricity consumption - from 30  W/hr  to 110  W/hr depending on the operating mode.
If necessary, the system provides a connection of short branched exhaust ventilation and / or air plenum channels (Σδr50pa).
Also, the system can be made for mounting in a wall or to be placed inside the premise.
The system is controlled through the 1st dimer (adjustable resistor switch) 2 dimers or with professional control box (is packaged under order) which allows you to install a ventilation system for the five main modes: passive, reverse recuperation, air extraction, inflow, recuperation.

RECUPERATOR "PRANA-340 S"

Body diameter of the operating module  - 340 mm;
Mounting hole diameter - 350 mm;
Volumes of air exchange at recuperation:
Inflows: 1100 m³/hr,
Air extraction: 1020 m³/hr,
Efficiency % - 78 - 48;
Electricity consumption - from 80 W/hr  to 310 W/hr depending on the operating mode.
System provides a connection of long branched exhaust ventilation and / or air plenum channels (Σδr≤ 350pa).
Also, the system can be made for mounting in a wall or to be placed inside the premise.
The system is controlled through the 1st dimer (adjustable resistor switch) 2 dimers or with professional control box (is packaged under order).

FUNCTION "MINI REHEATING"

Home and semi-industrial series of decentralized ventilation systems Prana have additionally install function "mini reheating", which allows to extend the temperature range of use of ventilation systems Prana to -25 ºC (-30 °C).
Function is turned on / off with the remote control. When operating in extreme temperatures ice accretion of the external ventilator should be prevented. In the “night” mode of the recuperator operation temperature of inflow air should be increased to 6-7 ºC.

INSTALLATION AND SETUP

Home and semi-industrial series


Is mounted in the upper part of the wall bordering the street. Through hole to the outside of the corresponding diameter is done, in which a mounting foam or other sealant is installed to operating module. In such way, the entire working unit is in the wall thickness, and only ventilating lattices remain visible: one - inside the building, the other - on the facade. Through holes are at an angle of 1-3 degrees to the street.
To ensure proper operation of the ventilation system, it is necessary that its outlet (outside) extended beyond the walls at a distance of not less than 5mm. Length of the working module corresponds to the thickness of the wall where the installation is planed. Ventilation system is connected to the fixed network with the voltage and frequency of 50Hz 220W.

Industrial series

Ventilation unit of industrial series are designed for free placement in the center of premise, are attached to the support surface with clamps or brackets. To the ventilation system are connected ducts of air extraction and inflow depending on the design of the ventilation system. If the operating unit is designed for installation in a wall, then in the top of the wall that borders the street must be made a through hole with the appropriate diameter with a slope of 3-5 degrees to the street.


Operating unit is installed in the hole on mounting foam or other sealant. To ensure proper operation of the ventilation system, it is necessary that its outlet (outside) extended beyond the wall to a distance to ensure the free inflow/air extraction through the ventilation channel located on the body of the ventilation system.
By order system can be packaged with outlets for moving apart of inflow/ air extraction ventilation channels inside the premise.
By order we manufacture ventilation systems with other specifications.
Company "Prana" provides an individual approach to the client and is always ready to cooperate.

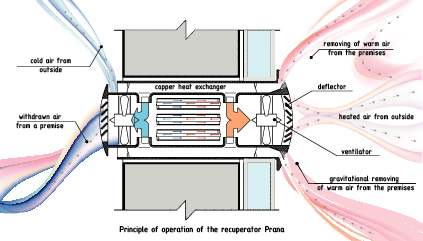

PRINCIPLE OF OPERATION OF PRANA RECUPERATOR

Airflow passes through the copper heat exchangers arranged within the working unit, while separated from one another both inside the operating module, and at the "input-output", and do not mix.
In the ventilation system "Prana" warm exhaust air, which is output from the premise heats the cold air entering from outside. In the summer it is vice verse – it cools.

The system has no filters and copper heat exchangers provide decontamination of air due to the fact that once-through air ducts, and their length is small, the ionic composition and natural energy component of the air "prana" are preserved.

AS A RESULT:
“Prana” does not only ventilate the premise, but also provides a sufficient amount of preheated "street" air that is saturated with oxygen and natural ions. In addition, this system can significantly reduce heating costs of house in winter and cooling in summer thanks to efficient heat exchanger.

KEY BENEFITS OF PRANA RECUPERATOR:
Compact dimensions: body diameter of the operating module - 150, 200, 250, 340 mm. The length is adjusted according to the thickness the walls.
Copper heat exchanger: first of all, cooper has a great heat transfer, secondly, due to the fact that copper is an antiseptic (maximum close to silver) in the recuperator creates an environment that provides disinfection of air, ie viruses, bacteria, microbes lose viability.
Efficiency up to 83%: is achieved through passing of counterpropagating exhaust and plenum air streams that do not overlap with each other, through the copper heat exchangers system (recuperators);
Speed ​​and ease of installation: a through-hole to outside is done, in which a mounting foam or other sealant is installed to operating module. Also, there are models for placement ventilation unit inside the building (as an internal unit). Only ventilating lattices remain visible: one - inside the building, the other - on the facade.
Without consumables.
Availability and ease of maintenance.
The maximum level of electricity consumption from 32 Vt - 310Vt, depending on the model.
Easy and simple control system: remote control or dimer (adjustable resistor).
Silent during the night mode (home series).
Warranty Period 2 years.
Fair and reasonable price with competitive ratio "price-qualit".

ABOUT MANUFACTURER

PRANA company is a creator and manufacturer of a number of modern technologies in the field of energy saving, which of them are in mass production today:
- ventilation system recuperator Prana;
- facade insulation system Ekotemp;
- system of internal wall insulation Ekotemp;
- heat soundproof interroom partitions and noise isolation system of walls Ekotemp.

OUR PRINCIPLES

Ecology: no pollution, hazardous materials or compounds, elimination of any negative effects of energy, maximum preservation of healing forces of nature.
Energy Efficiency: economically justified reduction of energy losses of the building and maximum possible ensurance of its energy needs through energy redistribution in the surrounding area.
Economy: the use of efficient materials, technologies and design solutions gives excellent results.
We operate on the market of energy saving more than 11 years. Therefore we offer you proven by time energy-saving products and systems that have been tested not only by Ukrainian consumers, but also by the international community.
Prana company participated in the first international forum Bauhaus.SOLAR ERFURT (Germany, 2008)., where she introduced the "concept of bioenergy comfort", the ventilation system Prana and the heat soundproof system Ekotemp. Patented constructive solution of the ventilation system offered to the general public still has no analogues in the world.
In 2010, ventilation systems, wall and interroom partitions insulation systems, which we offer you, were presented at the international specialized building exhibitions in Rzeszow (Poland, September 2010) and Wroclaw (Poland, December 2010). And also at the exhibition on energy efficiency GRAZ (Austria, 2007), where they have been considered the best.
